10/10/19

Message Overview:

Fault Message:

L OIL PRESS WRG/XDCR XCK

Fault Code:

7326021LBR

Associated CAS:

None

Reporting LRU: Left Engine Electronic Controller (EEC)
System Description: 79-30-00
Schematic Diagram: 79-30-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]

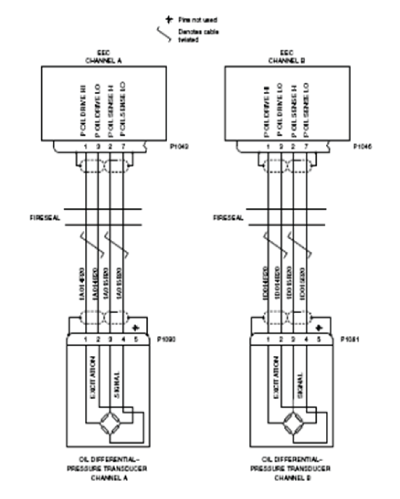

Wiring Diagram: 71-50-01 [ Global Express ]  [ G5000 ]  [ Global XRS ]
71-50-01 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Fault Description:

Oil pressure signal cross-check failed between Engine Electronic Controller (EEC) channel A and B. Oil pressure digital indication change to dashes on Engine Indication and Crew Alerting System (EICAS).

(LOSS OF OIL PRESS INDICATION - DASHES).

Possible Causes:

  • Oil Pressure Transducer
  • Left Engine Electronic Controller (EEC)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

  1. Individual engine oil pressure transducer value can be read from the CAIMS Aircraft Diagnostic, Data Bus reader. Select the ADD LABEL button and select Engine Electronic Controller (EEC XX). Then Select Label 317 and 074 to read the value of the individual oil pressure transducer.

Rolls Royce NTO:

  • NTO 025, Issue 001 - Engine Oil system. Required actions when a drop in oil pressure is observed with increasing altitude

Quick Links:

Opening of the Cowls AMM 71-10-00-010-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Closing of the Cowls AMM 71-10-00-410-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Connection of Electrical Connectors EMM 70-50-01-910-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Eng Electronic Controller (EEC)
Mod 73-101559		 EMM 73-21-01-000-801-B00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Eng Electronic Controller (EEC)
Mod 73-101559		 EMM 73-21-01-400-801-B001 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Oil Differential Pressure Transducer EMM 79-33-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Oil Differential Pressure Transducer EMM 79-33-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Troubleshooting Recommendations:

  1. Swap oil pressure transducer A between engines.

    1. If system checks are good, replace oil pressure transducer A of left engine and do close out.
    2. If fault remains, continue with next step.

  2. Swap oil pressure transducer B between engines.

    1. If system checks are good, replace oil pressure transducer B of left engine and do close out.
    2. If fault remains, continue with next step.

  3. Perform wiring checks between the Left EEC and the Oil pressure transducer A.

    1. If wiring checks are not good, repair defective wiring as required and do close out.
    2. If wiring checks are good, continue with next step.

  4. Perform wiring checks between the Left EEC and the Oil pressure transducer B.

    1. If wiring checks are not good, repair defective wiring as required and do close out.
    2. If wiring checks are good, continue with next step.

  5. Replace the Left EEC.
  6. Do close out.
