Message Overview:

Message Name:

APUGCU H/W OVERVOLTAGE SENSE FAULT

Message Code:

2420175LPS

Associated CAS:

APU GEN FAIL
(Advisory)

Reporting LRU: Auxiliary Power Unit Generator Control Unit (APU GCU)
System Description: 24-22-00

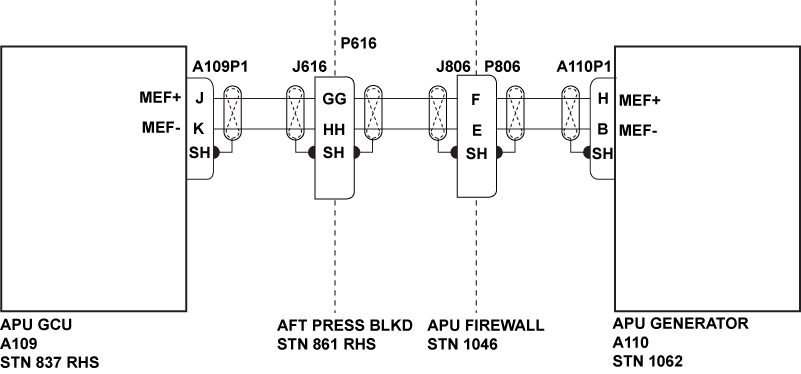

Schematic Diagram: 24-24-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: 24-24-05 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Message Description:

The Auxiliary Power Unit Generator Control Unit (APU GCU) has detected a hardware over-voltage failure on initial power-up, consequently preventing the Generator to come on-line.

Possible Causes:

  • Auxiliary Power Unit (APU) Generator Control Unit (GCU) (A109)
  • Auxiliary Power Unit (APU) Generator (A110)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Notice To Operators (NTO): None

Flight Operation Notifications Manual (FONM): None

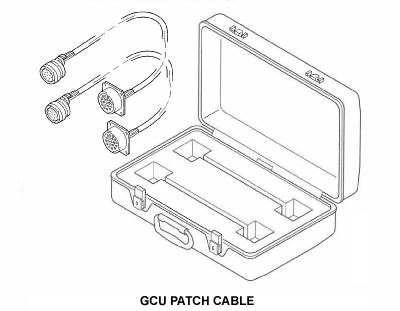

A GCU patch cable (GSE REF # 24X-24-02) can be used to interchange GCUs 1, 4 and 5 into position 2 or 3 (for troubleshooting only).

gcu_patch_cable

Quick Links:

Electrical/Electronic Safety Precautions AMM 24-00-00-910-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the APU Generator AMM 24-22-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the APU Generator AMM 24-22-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Generator Control Units (GCU) AMM 24-24-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Generator Control Units (GCU) AMM 24-24-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Troubleshooting Recommendations:

  1. With connectors A109P1 (APUGCU) and A110P1 (APU GEN) disconnected, perform a wiring check as follows:

    From  To Expected Result Result
    A110P1-H A109P1-J Continuity
    A110P1-B A109P1-K Continuity
    A110P1-B GND Open
    A110P1-H GND Open

    1. If a short to ground fault is detected, repair or replace defective associated wiring and do close out.
    2. If no short to ground fault is detected, continue with next step.
      NOTE: A megohm meter may be required to detect fault.

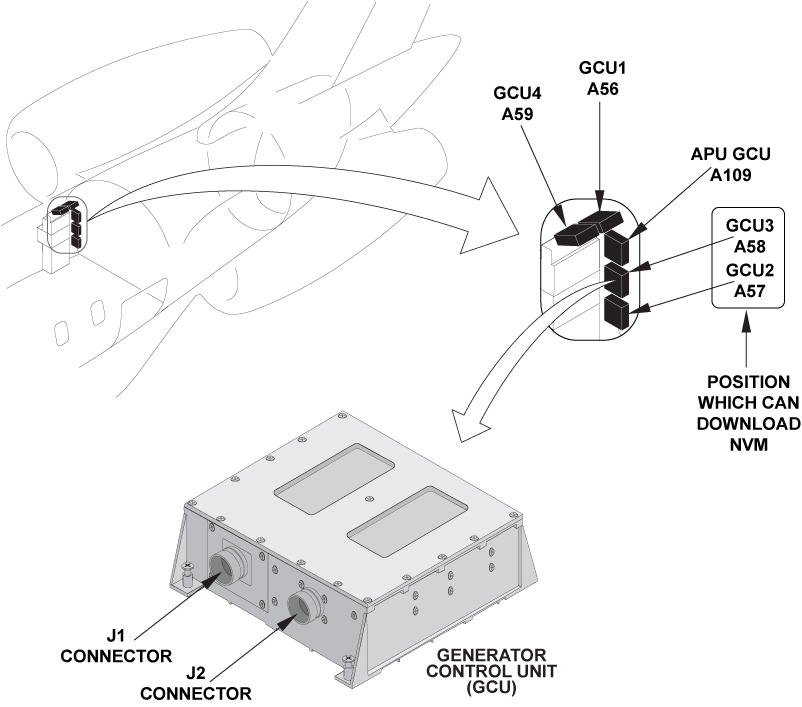

  2. Interchange APU GCU with GCU 3 (or use the patch cable).

    1. If system checks are good, replace the APU GCU and do close out.
    2. If fault remains, continue with next step.

  3. Replace APU Generator.
  4. Do close out.

apugcu_hw_over-voltage_sense_faultgcu_positions
