Message Overview:

Fault Message:

DCPC DIODE #5-D5 FAILED

Fault Code:

2460450DCP

Associated CAS:

ELEC SYS FAIL
(Caution)

Reporting LRU: DC Power Center (DCPC)
System Description: 24-60-00
Schematic Diagram: 24-61-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: 24-61-01 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Fault Description:

DC Power Center (DCPC) does not sense the voltage from the Diode D5.

Possible Causes:

  • DC Power Center (DCPC) Diode (D5)
  • Electronic Module (EM) 4
  • Battery Feeder Card
  • DC Power Center (DCPC) (A63)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Quick Links:

Removal of the DC Power Center (DCPC) AMM 24-61-00-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the DC Power Center (DCPC) AMM 24-61-00-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the DC Power Center (DCPC)Secondary-Power Distribution Assembly (SPDA) Feeder AMM 24-61-37-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the DC Power Center (DCPC)Secondary-Power Distribution Assembly (SPDA) Feeder AMM 24-61-37-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the DC Power Center (DCPC)Diodes (D4 and D5) AMM 24-61-49-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the DC Power Center (DCPC)Diodes (D4 and D5) AMM 24-61-49-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the DC Power Center (DCPC) Electronic Modules AMM 24-61-65-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the DC Power Center (DCPC) Electronic Modules AMM 24-61-65-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
DC Power Center (DCPC) Assembly CMM 24-61-02 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Troubleshooting Recommendations:

  1. Swap BATT feeder card with DC 1 feeder card. Does the fault follow the card?

    1. If YES, replace BATT feeder card and do close out.
    2. If NO, continue with next step.

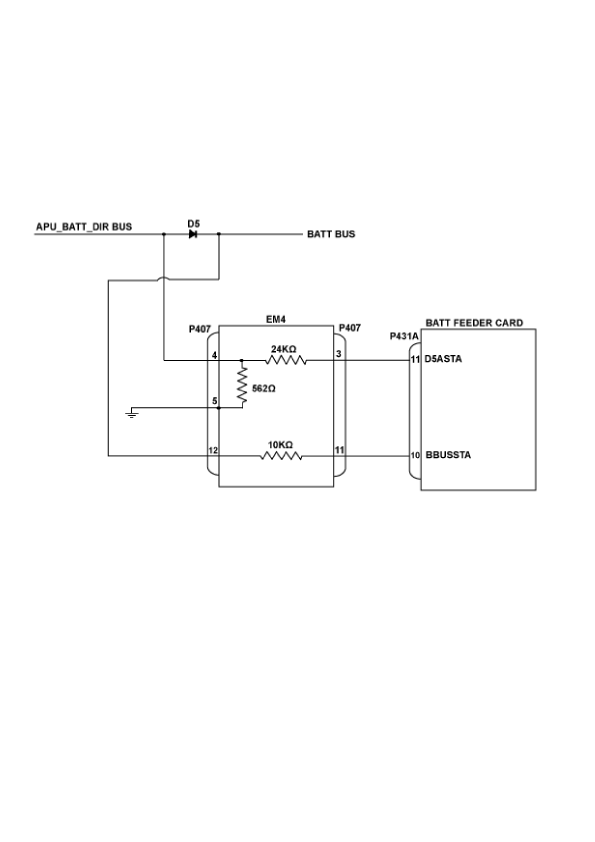

  2. Remove BATT Feeder card in DCPC. Disconnect EM4 connector P407. Perform a resistance check for a short circuit as follows:

    From To Result
    P407-4 P407-12

    1. If there is a short circuit, replace D5 and do close out.
    2. If there is no short circuit, continue with next step.

  3. Perform a continuity check as follows:

    From To Result
    P407-3 Ground
    P407-11 Ground

    1. If there is continuity, go to step 9.
    2. If there is no continuity, continue with next step.

  4. Perform a continuity check as follows:

    From To Result
    P407-3 P431A-11
    P407-11 P431A-10

    1. If there is no continuity, go to step 9.
    2. If there is continuity, continue with next step.

  5. Perform a resistance check on EM4 as follows:

    From To Value Result
    J407-5 J407-4 562 Ω
    J407-4 J407-3 24 KΩ
    J407-12 J407-11 10 KΩ

    1. If the resistance values are incorrect, replace EM4 and do close out.
    2. If the resistance values are correct, continue with next step.

  6. Perform a continuity check as follows:

    From To Result
    P407-4 D5-Anode

    1. If there is no continuity, go to step 9.
    2. If there is continuity, continue with next step.

  7. Perform a continuity check as follows:

    From To Result
    P407-12 D5-Cathode

    1. If there is no continuity, go to step 9.
    2. If there is continuity, continue with next step.

  8. Replace Diode D5. Is the fault resolved?

    1. If YES, do close out.
    2. If NO, continue with next step.

  9. Replace DCPC.
  10. Do close out.
