07/08/19
Message Overview:
Fault Message:
ROLL DISCONNECT SWITCH/WRG FAULT
Fault Code:
27657190SX
Associated CAS:
| Reporting LRU: | Flight Control Unit (FCU) |
| System Description: | 27-60-00 |
| Schematic Diagram: | 27-60-00 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Wiring Diagram: | 27-60-05 [ Global Express ] [ G5000 ] [ Global XRS ] |
Fault Description:
There is an incorrect status of the Roll Disconnect Switch.
Possible Causes:
- Roll Disconnect Switch (S35)
- Flight Control Unit (FCU) 1 (A65)
- Flight-Control Unit (FCU) 2 (A66)
- Associated Wiring
Troubleshooting Tips:
Advisory Wire/Service Bulletin: None
Forum Articles/Infoservice/Newsletter: None
The roll disconnect switch can be monitor in CAIMS at this location:
- SYSTEM DIAG.
- 27-00 FLIGHT CONTROLS.
- FLIGHT CONTROL UNIT #1(2).
- LRU TEST.
- DISPLAY MISC. & SENSORS STATUS.
- CONFIRM.
- CONFIRM.
Quick Links:
| Removal of the Roll Disconnect Switch | AMM 27-11-09-000-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Installation of the Roll Disconnect Switch | AMM 27-11-09-400-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Removal of the Flight-Control Units | AMM 27-61-05-000-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Installation of the Flight-Control Units | AMM 27-61-05-400-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Data Download from the Maintenance Diagnostic Computer (MDC) | AMM 45-45-01-970-802 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Load the Test and Rigging Files to the Maintenance Diagnostic Computer (MDC) | AMM 45-45-01-970-804 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Wiring - Maintenance Practices - ALL | SPM 20-12-00-02 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Wire Repair - Maintenance Practices - ALL | SPM 20-12-10-02 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Electrical Connectors - Maintenance Practice - ALL | SPM 20-20-00-02 [ Global Express ] [ G5000 ] [ Global XRS ] |
Troubleshooting Recommendations:

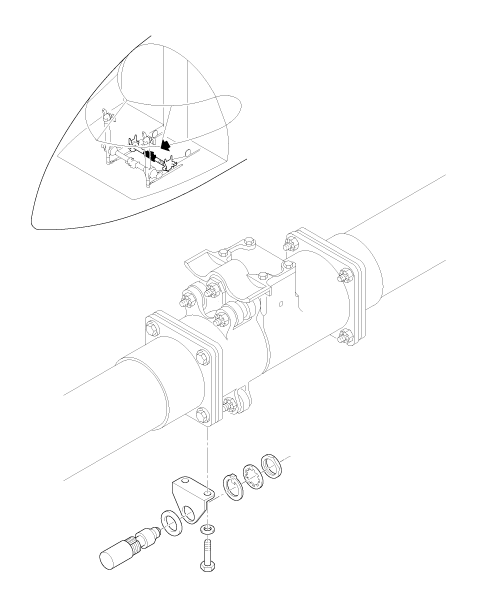

- Perform a visual inspection of the roll disconnect Assembly, make sure the reset piston to engage the roll disconnect mechanism is engaged.
- If system checks are good, do close out.
- If fault remains, continue with next step.
- Hold the copilot handwheel and turn the pilot handwheel until the disconnect mechanism disengage. Re-engage the reset piston and confirm if the fault is still present.
- If system checks are good, do close out.
- If fault remains, continue with next step.
- Perform open/short to ground checks at FCUs.
- If the checks are good, go to step 6.
- If any of the checks fails, continue with next step.
Handwheel FCU Roll Disconnect Switch Normal Status Disconnected A65AP1-9B S35-2 (Wire TAD4508) shorted to ground Connected A65AP1-9B S35-2 (Wire TAD4508) open to ground Disconnected A66AP1-9B S35-5 (Wire TAD4508) shorted to ground Connected A66AP1-9B S35-5 (Wire TAD4508) open to ground
- Perform wiring checks between FCU 1/FCU 2 and roll disconnect switch.
- If wiring checks are not good, repair defective wiring as required and do close out.
- If wiring checks are good, continue with next step.
- Replace roll disconnect switch.
- If system checks are good, do close out.
- If fault remains, continue with next step.
- Replace defective FCU and reset FCUs latched faults.
- Do close out.
