Message Overview:

Fault Message:

SPOILER CTRL LEVER [CH1]/WRG FAULT

Fault Code:

27661221SX

Associated CAS:

CONFIG SPOILERS
(Warning)

FLT SPLR DEPLOYED
(Caution)

SPLR LEVER FAIL
(Caution)

NO TAKEOFF
(Advisory)

SPLRS STAB BIT
(Advisory)

Reporting LRU: Flight Control Unit (FCU) 1
System Description: 27-60-00
Schematic Diagram: 27-60-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: 27-60-03 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Fault Description:

There is a problem with the Spoiler Control Lever. This fault has been detected by the Flight Control Unit 1

The difference between the 2 channels exceeds either:

  • 8 deg with a confirmation delay of 600 ms or
  • 3 deg with a confirmation delay of 1.5 s

Possible Causes:

  • Flight Spoiler Control Lever (FSCL) (MT135)
  • Flight Control Unit (FCU) 1 (A65)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

This fault may sometime be cleared by performing the flight control system reset procedure. If the message comes back more then once within 10 flight legs, troubleshooting is required.

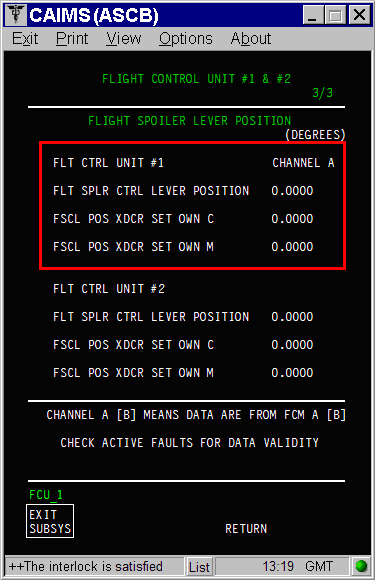

The spoiler control lever can be verified in CAIMS:

  1. SYSTEM DIAG
  2. 27-00 FLIGHT CONTROLS
  3. FLIGHT CONTROL UNIT #1
  4. LRU TEST
  5. DISPLAY SPOILER DATA
  6. Go to page 3/3
    NOTE: Confirm the spoiler lever position on channel A and B.

Quick Links:

Removal of the Spoiler Control Lever AMM 27-61-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Spoiler Control Lever AMM 27-61-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Flight-Control Units AMM 27-61-05-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Flight-Control Units AMM 27-61-05-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Access to System Diagnostics AMM 45-45-00-970-804 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Troubleshooting Recommendations:

  1. Swap FCU 1 with FCU 2.

    1. If system checks are good, replace FCU 1. Reset FCUs latched faults and do close out.
    2. If fault remains, continue with next step.

  2. Perform wiring checks between FCU 1 to the Flight Spoiler Control Lever (MT135).

    1. If wiring checks are not good, repair defective wiring as required and do close out.
    2. If wiring checks are good, continue with next step.

  3. Replace Flight Spoiler Control Lever.
  4. Do close out.
