08/13/19

Message Overview:

Fault Message:

HYD PUMP 3A FAIL

Fault Code:

0000H3AF

Associated CAS:

HYD PUMP 3A FAIL
(Advisory)

Reporting LRU: AC Power Center (ACPC)
System Description: 29-30-00
Schematic Diagram: 29-13-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: 29-00-05 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Fault Description:

Data Acquisition Units (DAU) 4 is receiving an input that the Hydraulic Pressure Switch 3A is less than 1800 psi (low) with Hydraulic Pump Switch 3A selected to ON.

NOTE: AC Motor Pump (ACMP) Pressure Switches close at 2400 psi (high) as pressure rises and opens at 1800 psi (low) as pressure decreases.

Possible Causes:

  • AC Power Center (ACPC) Secondary Logic Card (SLC) 4
  • AC Motor Pump (ACMP) 3A (B53)
  • AC Power Center (ACPC) Relay (K24)
  • AC Motor Pump (ACPC) Pressure Switch 3A (S39)
  • AC Power Center (ACPC) (A54)
  • Data Acquisition Units (DAU) 4 (A31)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Quick Links:

Quantity Check of the Hydraulic Fluid in the No. 3 Hydraulic System AMM 12-12-00-610-802 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the AC Power Center (ACPC) AMM 24-51-00-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the AC Power Center (ACPC) AMM 24-51-00-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the AC Power Center (ACPC) Secondary Logic AMM 24-51-13-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the AC Power Center (ACPC) Secondary Logic AMM 24-51-13-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the No. 3 Hydraulic-System AC-Motor-Driven Pumps AMM 29-13-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the No. 3 Hydraulic-System AC-Motor-Driven Pumps AMM 29-13-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Hydraulic Pressure Transducers AMM 29-31-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Hydraulic Pressure Transducers AMM 29-31-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Data Acquisition Units (DAU) AMM 31-42-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Data Acquisition Units (DAU) AMM 31-42-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Troubleshooting Recommendations:

  1. Ensure 3 Hydraulic System is properly serviced.
  2. Operate Hydraulic Pump 3A and note Hydraulic System 3 pressure.

    1. If pump operates and pressure in below 2400 psi, replace ACMP 3A and do close out.
    2. If pump does not operate, go to step 4.
    3. If pump operates and pressure is above 2400 psi, continue with next step.

  3. Swap Hydraulic Pressure Switch 3A and 3B.

    1. If system checks are good, replace Hydraulic Pressure Switch 3A and do close out.
    2. If fault remains, go to step 8.

  4. Perform voltage check at ACMP 3A. Check for 115 VAC at connector B53P1 as follows:

    From To Expected Result Result
    B53P1-A B53P1-E 115 VAC
    B53P1-B B53P1-E 115 VAC
    B53P1-C B53P1-E 115 VAC

    1. If voltage is present, replace ACMP 3A and do close out.
    2. If voltage is not present, continue with next step.

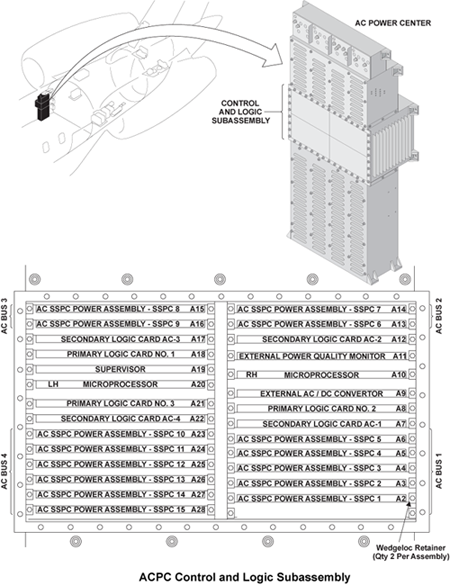

  5. Swap ACPC SLC AC-4 with SLC AC-1.

    1. If system checks are good, replace ACPC SLC AC-4 and do close out.
    2. If fault remains, continue with next step.

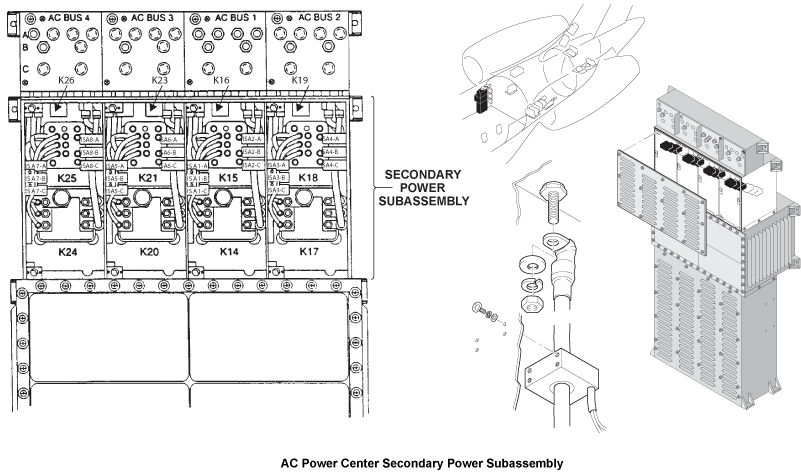

  6. Swap K24 relay with K20 relay in ACPC.

    1. If system checks are good, replace K24 relay and do close out.
    2. If fault remains, continue with next step.

  7. Perform wiring checks between ACMP 3A, ACPC Relay K24, Hydraulic Pressure Switch 3A and DAU 4.

    1. If wiring checks are not good, repair defective wiring as required and do close out.
    2. If wiring checks are good, continue with next step.

  8. Swap DAU 4 with DAU 2.

    1. If system checks are good, replace DAU 4 and do close out.
    2. If fault remains, continue with next step.

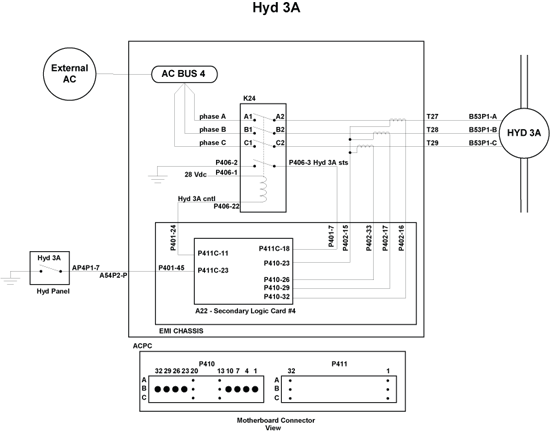

  9. Accomplish check of EMI filter as shown below.
  10. Remove ACPC Secondary Logic Card 4 (SLC4).
  11. Measure the EMI Filter continuity from connector P410-22 to aircraft structure.

    1. If reading is ground, replace the ACPC and do close out.
    2. If reading is open, continue with next step.

  12. Measure for open circuit within SLC 4 as follows:

    From To Result
    P410-23 P410-26
    P410-23 P410-29
    P410-23 P410-32

    1. If reading are closed, do close out.
    2. If reading are open, continue with next step.

  13. Replace ACPC.
  14. Do close out.
