Message Overview:

Fault Message:

L SAV FAILURE

Fault Code:

7326120LBR

Associated CAS:

L ENG SAV FAIL
(Caution)

Reporting LRU: Left Engine Electronic Controller (EEC)
System Description: 80 -11-00
Schematic Diagram: 80-11-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: 71-50-01 [ Global Express ]  [ G5000 ]  [ Global XRS ]
80-11-01 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Fault Description:

The fault message is set when:

  • The Full-Authority Digital Engine-Controller (FADEC) cannot operate the Starter Air Valve (SAV) correctly
  • At the same time, the signals from channel A and channel B of the SAV are the same

Possible Causes:

  • Starter Air Valve (SAV)
  • Left Engine Electronic Controller (EEC)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

  • Both CH A and CH B SAV solenoid circuits faults must be detected to set the L ENG SAV FAIL (Caution) CAS message

Quick Links:

Opening of the Cowls AMM 71-10-00-010-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Closing of the Cowls AMM 71-10-00-410-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Eng Electronic Controller (EEC)
Mod 73-101559		 EMM 73-21-01-000-801-B00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Eng Electronic Controller (EEC)
Mod 73-101559		 EMM 73-21-01-400-801-B001 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Starter Air Valve EMM 80-11-03-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Starter Air Valve EMM 80-11-03-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Troubleshooting Recommendations:

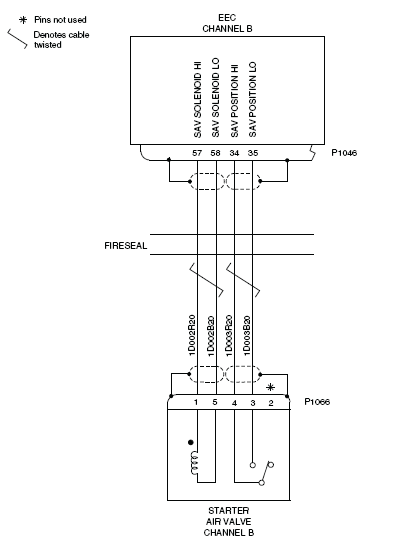

  1. Perform wiring checks between SAV and EEC.

    1. If wiring checks are not good, repair defective wiring as required and do close out.
    2. If wiring checks are good, continue with next step.

  2. Swap SAV between engines.

    1. If system checks are good, replace defective SAV and do close out.
    2. If fault remains, continue with next step.

  3. Replace Left EEC.
  4. Do close out.
