Message Overview:

Fault Message:

LEFT BLEED MODUL & SOV CMD /L PRV

Fault Code:

3615319BMC

Associated CAS:

L BLEED SYS FAIL
(Caution)

BLEED MISCONFIG
(Advisory)

L BLEED FAULT
(Advisory)

Reporting LRU: Bleed Management Controller (BMC)
System Description: 36-11-00
Schematic Diagram: 36-11-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: 71-50-01 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Fault Description:

The Left Bleed Pressure Regulating and Shut-off Valve (PRV) is not at the required position to agree with the Bleed Management Controller (BMC) command. Inhibited during Take-Off and Landing.

Possible Causes:

  • Pressure Regulating Valve (PRV)
  • Secondary Power Distribution Assembly (SPDA) 2 (A14)
  • Data Acquisition Unit (DAU) 3 (A30)
  • Bleed Management Controller (BMC) 1 (A69)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin:

  • AW700-36-0365 - Bleed Management Controller - Data Gathering to Reduce No Fault Found (NFF) rate

Forum Articles/Infoservice/Newsletter:

  • Forum Article 2011-VOL 8 issue 23 - Bleed Management Controller (BMC) Top 10 No Fault Found (NFF) vs. Reliability Improvement Modification Program (RIMP) implementation

Questionnaire for replacing the BMC. Follow instructions using this (Fill out form)

NOTE: Always verify you are working with the current document revision. Access the CIC website to ensure the latest document revision.

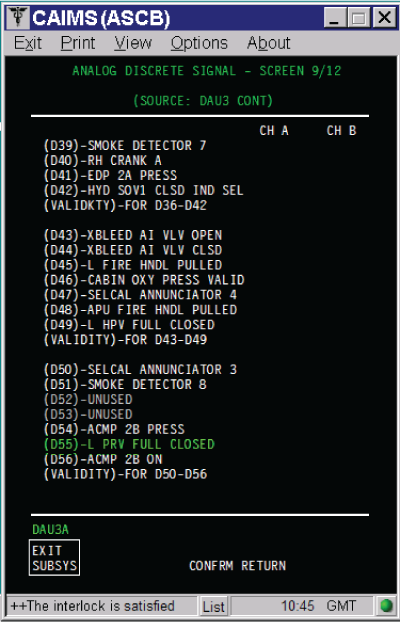

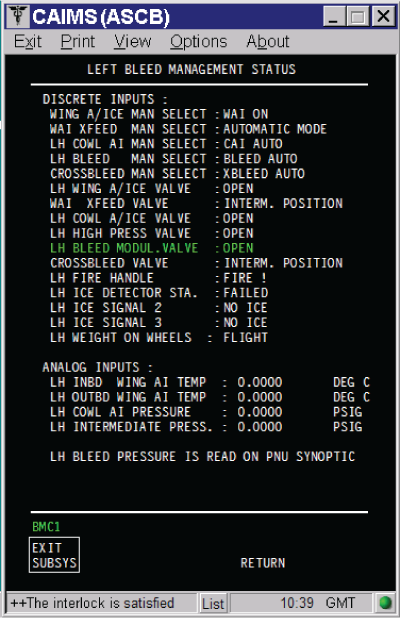

PRV position can be monitored in PMAT.

Quick Links:

Removal of the Secondary-Power Distribution Assemblies AMM 24-62-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Secondary-Power Distribution Assemblies AMM 24-62-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Data Acquisition Units (DAU) AMM 31-42-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Data Acquisition Units (DAU) AMM 31-42-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Bleed-Pressure Regulating-and-Shutoff Valve AMM 36-11-09-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Bleed-Pressure Regulating-and-Shutoff Valve AMM 36-11-09-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Bleed Management Controller AMM 36-11-33-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Bleed Management Controller AMM 36-11-33-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Troubleshooting Recommendations:

  1. Swap PRVs.

    1. If system checks are good, replace defective PRV and do close out.
    2. If fault remains, continue with next step.

  2. Perform wiring checks of PRV grounds.

    1. If wiring checks are not good, repair defective wiring as required and do close out.
    2. If wiring checks are good, continue with next step.

  3. Perform wiring checks between PRV and BMC 1.

    1. If wiring checks are not good, repair defective wiring as required and do close out.
    2. If wiring checks are good, continue with next step.
      NOTE: Remove all interface components for short test.

  4. Perform wiring checks between PRV and SPDA 2.

    1. If wiring checks are not good, repair defective wiring as required and do close out.
    2. If wiring checks are good, continue with next step.
      NOTE: Remove all interface components for short test.

  5. Swap SPDA 2 with SPDA 3.

    1. If system checks are good, replace SPDA 2 and do close out.
    2. If fault remains, continue with next step.

  6. Swap DAU 3 with DAU 1.

    1. If system checks are good, replace DAU 3 and do close out.
    2. If fault remains, continue with next step.

  7. Replace BMC 1.
  8. Do close out.
