Message Overview:

Fault Message:

RIGHT WAI MODUL & SOV CMD /R WAIV

Fault Code:

3616317BMC

Associated CAS:

R BLEED SYS FAIL
(Caution)

R WING A/ICE FAIL
(Caution)

BLEED MISCONFIG
(Advisory)

WING A/ICE FAULT
(Advisory)

Reporting LRU: Bleed Management Controller (BMC) 2
System Description: 30-12-00
Schematic Diagram: 30-11-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: 30-11-02 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Fault Description:

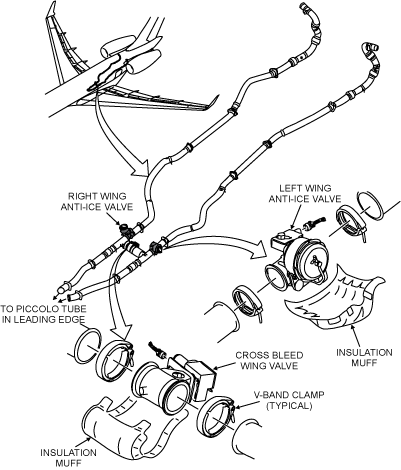

The Right Wing Anti-Ice Modulating And Shut-Off Valve (WAIV) is not at the correct position to agree with the Bleed Management Controller (BMC) command. Inhibited during Take-off and Landing.

Possible Causes:

  • Right Anti-Ice Modulating And Shut-Off Valve (R WAIV) (MT126)
  • Data Acquisition Unit (DAU) 4 (A31)
  • Bleed Management Controller (BMC) 2 (A70)
  • Junction Box (JB4)/PCB3
  • Relay (K11)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin:

  • AW700-36-0365 - Bleed management controller - Data Gathering to reduce No Fault Found (NFF) rate
  • 700T-0006 - Revision 1 - WING A/ICE FAULT (Advisory) EICAS Messages

Forum Articles/Infoservice/Newsletter:

NOTE: Before removing JB4, replace PCB3 Circuit Card if available.

NOTE: Use spare relay if available.

NOTE: Always verify you are working with the current document revision. Access the CIC website to ensure the latest document revision.

Quick Links:

Removal of the Junction Box JB4 AMM 24-00-05-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Junction Box JB4 AMM 24-00-05-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Junction Box JB4 Circuit-Cards AMM 24-00-06-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Junction Box JB4 Circuit-Cards AMM 24-00-06-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Anti-Icing Modulating-and-Shutoff Valves AMM 30-11-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Anti-Icing Modulating-and-Shutoff Valves AMM 30-11-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Operational Test of the Anti-Icing Modulating-and-Shutoff Valves AMM 30-11-01-710-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Data Acquisition Units (DAU) AMM 31-42-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Data Acquisition Units (DAU) AMM 31-42-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Bleed Management Controller AMM 36-11-33-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Bleed Management Controller AMM 36-11-33-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Belly Fairing Access-Panels
(181BB, 183BB, 185BL/186BR, 185CL/186CR)
AMM 53-61-19-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Belly Fairing Access-Panels
(181BB, 183BB, 185BL/186BR, 185CL/186CR)
AMM 53-61-19-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Troubleshooting Recommendations:

  1. Perform wiring checks between R WAIV, DAU 4, JB4 and BMC 2.

    1. If wiring checks are not good, repair defective wiring as required and do close out.
    2. If wiring checks are good, continue with next step.

  2. Swap DAU 4 with DAU 2.

    1. If system checks are good, replace DAU 4 and do close out.
    2. If fault remains, continue with next step.

  3. Swap BMC 2 with BMC 1.

    1. If system checks are good, replace BMC 2 and do close out.
    2. If fault remains, continue with next step.

  4. Replace R WAIV.

    1. If system checks are good, do close out.
    2. If fault remains, continue with next step.

  5. Replace K11/PCB3/JB4.
  6. Do close out.
