Message Overview:

Fault Message:

BMC2 [NO DATA] /DAU3 [CH A] /WRG

Fault Code:

3616324BMC

Associated CAS:

R BLEED SYS FAIL
(Caution)

R BLEED FAULT
(Advisory)

Reporting LRU: Bleed Management Controller (BMC) 2
System Description: 36-11-00
Schematic Diagram: 31-42-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: 31-42-07 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Fault Description:

The Bleed Management Controller (BMC) 2 does not receive data from Channel A of Data Acquisition Unit (DAU) 3. Inhibited during Take-off and Landing.

Possible Causes:

  • Bleed Management Controller (BMC) 2 (A70)
  • Data Acquisition Unit (DAU) 3 (A30)
  • Junction Box (JB3)/PCB3
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin:

  • AW700-36-0365 - Bleed management controller - Data Gathering to reduce No Fault Found (NFF) rate
  • 700T-0006 - Revision 1 - WING A/ICE FAULT (Advisory) EICAS Messages

Forum Articles/Infoservice/Newsletter:

NOTE: Always verify you are working with the current document revision. Access the CIC website to ensure the latest document revision.

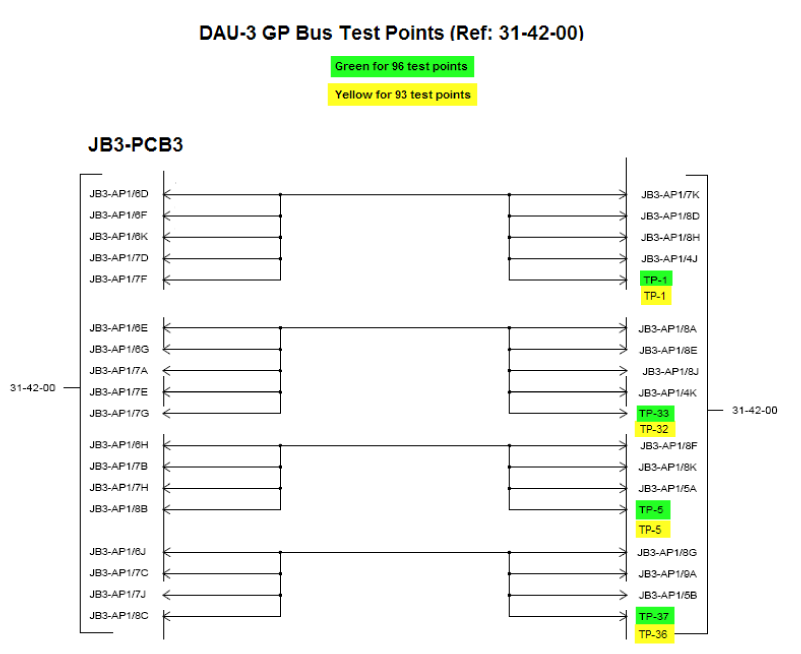

Test Points on Junction Box for troubleshooting reference 31-42-00 DAU3 GP Bus TP

Quick Links:

Removal of the Junction Box JB3 AMM 24-00-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Junction Box JB3 AMM 24-00-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Junction Box JB3 Circuit-Cards AMM 24-00-02-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Junction Box JB3 Circuit-Cards AMM 24-00-02-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Data Acquisition Units (DAU) AMM 31-42-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Data Acquisition Units (DAU) AMM 31-42-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Bleed Management Controller AMM 36-11-33-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Bleed Management Controller AMM 36-11-33-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Troubleshooting Recommendations:

  1. Swap BMC 2 with BMC 1.

    1. If system checks are good, replace BMC 2 and do close out.
    2. If fault remains, continue with next step.

  2. Swap DAU 3 with DAU 1 (if other units connected to the same ARINC GP Bus do not receive data).

    1. If system checks are good, replace DAU 3 and do close out.
    2. If fault remains, continue with next step.

  3. Perform wiring checks between BMC 2, JB3 and DAU 3.

    1. If wiring checks are not good, repair defective wiring as required and do close out.
    2. If wiring checks are good, continue with next step.
      NOTE: Remove all interface components for short test.

  4. Replace PCB3/JB3.
  5. Do close out.
