Message Overview:
Message Name:
LH MFS #3 ACTUATOR/WRG FAULT
Message Code:
27656252SX
Associated CAS:
| Reporting LRU: | Flight-Control Unit (FCU) 2 |
| System Description: | 27-60-00 |
| Schematic Diagram: | 27-60-00 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Wiring Diagram: | 27-60-09 [ Global Express ] [ G5000 ] [ Global XRS ] |
Message Description:
There is a problem with the Left Multi Function Spoiler (MFS) 3 Actuator and detected by the Flight Control Unit 2 channel B. The Left MFS 3 failed to deploy.
Possible Causes:
- Left Multi Function Spoiler (MFS) Power Control Unit (PCU) 3 (B58)
- Flight Control Unit (FCU) 2 (A66)
- Associated Wiring
Troubleshooting Tips:
Advisory Wire/Service Bulletin: None
Forum Articles/Infoservice/Newsletter: None
This fault may sometime be cleared by performing the flight control system reset procedure. If the fault clears, swap FCU positions.
Getting access to the left MFS actuator #3 connector, to check for/remove any corrosion may clear the condition on the a/c.

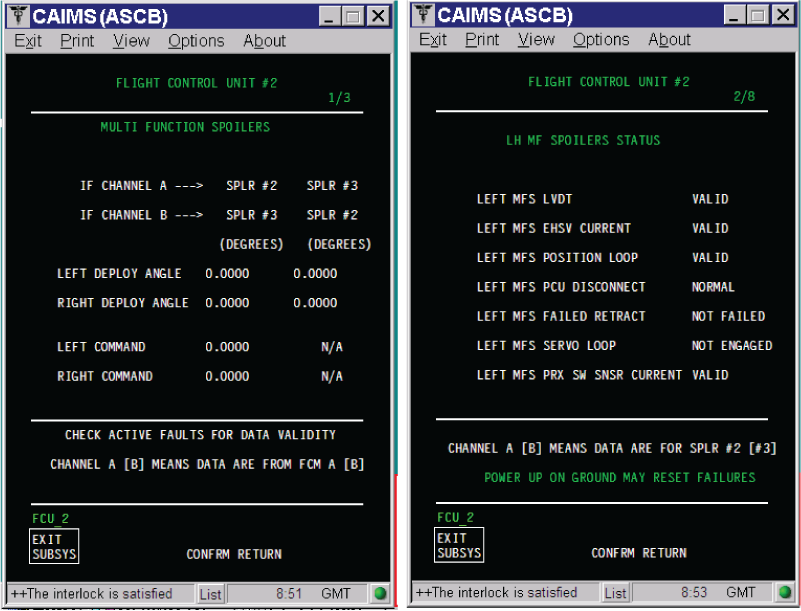

The left MFS#3 data can be found in CAIMS:
- SYSTEM DIAG.
- 27-00 FLIGHT CONTROLS.
- FLIGHT CONTROL UNIT #2.
- LRU TEST.
- DISPLAY SPOILER DATA.
- CONFIRM.
- Go to sheets 1/3.
And
- SYSTEM DIAG.
- 27-00 FLIGHT CONTROLS.
- FLIGHT CONTROL UNIT #2.
- LRU TEST.
- DISPLAY ADVANCED EFCS DATA.
- Go to page 2 of 8 and make sure the channel B is active.
Quick Links:
| Removal of the Flight-Control Units | AMM 27-61-05-000-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Installation of the Flight-Control Units | AMM 27-61-05-400-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Removal of the Multi-Function Spoiler Power-Control-Units (PCU) | AMM 27-62-01-000-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Installation of the Multi-Function Spoiler Power-Control-Units (PCU) | AMM 27-62-01-400-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Wire Repair - Maintenance Practices - ALL | SPM 20-12-10-02 [ Global Express ] [ G5000 ] [ Global XRS ] |
Troubleshooting Recommendations:
- Disconnect the left MFS 3 connector (B58) to check for corrosion on the pins and sockets.
- If system checks are good, do close out.
- If fault remains, continue with next step.
NOTE: Use contact cleaner.
- Interchange FCU 2 with FCU 1.
- If system checks are good, replace FCU 2. Reset FCUs latched faults and do close out.
- If fault remains, continue with next step.
NOTE: If the fault follows the FCU, it will post on the Right MFS 1.
- Perform wiring checks between FCU 2 and MFS 3.
- If wiring checks are not good, repair defective wiring as required and do close out.
- If wiring checks are good, continue with next step.
- Replace Left MFS 3 PCU.
- Do close out.
