09/10/19
Message Overview:
Fault Message:
RIGHT BLEED MODUL & SOV CMD /R PRV
Fault Code:
3616319BMC
Associated CAS:
| Reporting LRU: | Bleed Management Controller (BMC) 2 |
| System Description: | 36-11-00 |
| Schematic Diagram: | 36-11-00 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Wiring Diagram: | 30-11-02 [ Global Express ] [ G5000 ] [ Global XRS ] 71-50-01 [ Global Express ] [ G5000 ] [ Global XRS ] |
Fault Description:
The Right Bleed-Pressure Regulating and Shutoff Valve (PRV) is not at the required position to agree with the Bleed Management Controller (BMC) command. Inhibited during Take-off and Landing.
Possible Causes:
- Right Bleed Pressure Regulating and Shutoff Valve (PRV)
- Secondary-Power Distribution Assembly (SPDA) 3 (A15)
- Bleed Management Controller (BMC) 2 (A70)
- Data Acquisition Unit (DAU) 4 (A31)
- Associated Wiring
Troubleshooting Tips:
Advisory Wire/Service Bulletin:
- AW700-36-0365 - Bleed management controller - Data Gathering to reduce No Fault Found (NFF) rate
- 700T-0006 - Revision 1 - WING A/ICE FAULT (Advisory) EICAS Messages
Forum Articles/Infoservice/Newsletter:
- Forum Article 2011-VOL 8 issue 23 - Bleed Management Controller (BMC) Top 10 No Fault Found (NFF) vs. Reliability Improvement Modification Program (RIMP) implementation
- Infoservice - Wing Anti-Ice Fault Spurious EICAS Messages (Dec/1999)
- Questionnaire for replacing the BMC. Follow instructions using this (Fill out form)
NOTE: Always verify you are working with the current document revision. Access the CIC website to ensure the latest document revision.

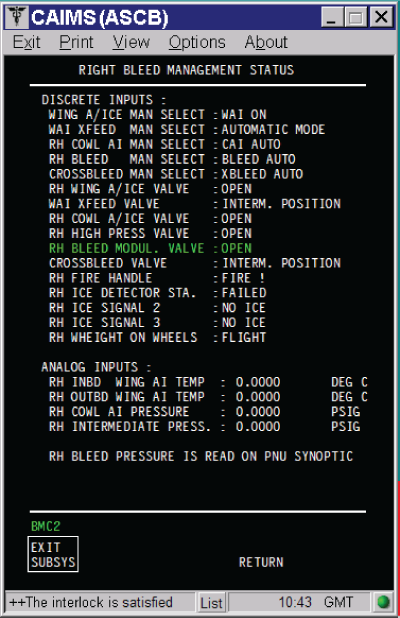

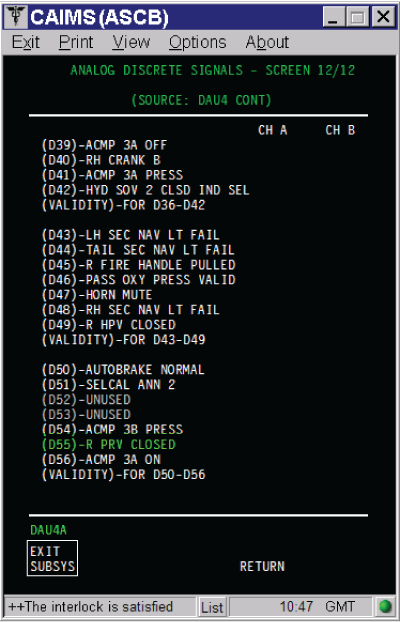

PRV position can be monitored in PMAT.
Quick Links:
| Removal of the Secondary-Power Distribution Assemblies | AMM 24-62-01-000-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Installation of the Secondary-Power Distribution Assemblies | AMM 24-62-01-400-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Removal of the Data Acquisition Units (DAU) | AMM 31-42-01-000-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Installation of the Data Acquisition Units (DAU) | AMM 31-42-01-400-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Removal of the Bleed-Pressure Regulating-and-Shutoff Valve | AMM 36-11-09-000-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Installation of the Bleed-Pressure Regulating-and-Shutoff Valve | AMM 36-11-09-400-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Removal of the Bleed Management Controller | AMM 36-11-33-000-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Installation of the Bleed Management Controller | AMM 36-11-33-400-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Wire Repair - Maintenance Practices - ALL | SPM 20-12-10-02 [ Global Express ] [ G5000 ] [ Global XRS ] |
Troubleshooting Recommendations:
- Swap the right PRSOV with the left PRSOV. Is the fault still present?
- If NO, replace right PRSOV and do close out.
- If YES, continue with next step.
- Perform a continuity check between the PRSOV (P707), BMC 2 (A70), SPDA 3 (A15) and DAU 4 (A31) as follows:
From To Result P707-1 A15P3-H P707-2 Ground P706-1 A70P1-12 P706-2 Ground P706-3 A31BP1-H14 - If there is no continuity, repair defective wiring as required and do close out.
- If there is continuity, continue with next step.
NOTE: Remove all interface components for the short circuit to ground test on the wires that are not connected to a ground.
- Swap SPDA 3 with SPDA 1. Is the fault still present?
- If NO, replace SPDA 3 and do close out.
- If YES, continue with next step.
- Replace BMC 2.
- Do close out.
